Configure and Manage a Floor (Floorplans)

After creating a Site for an Organization, you can declare buildings and floors that exist within the Site. When an AP device is added to OmniVista Cirrus R10 for monitoring, the building and floor in which the device is located must be specified. Make sure Site buildings and floors have been defined before attempting to add a device to the Site.

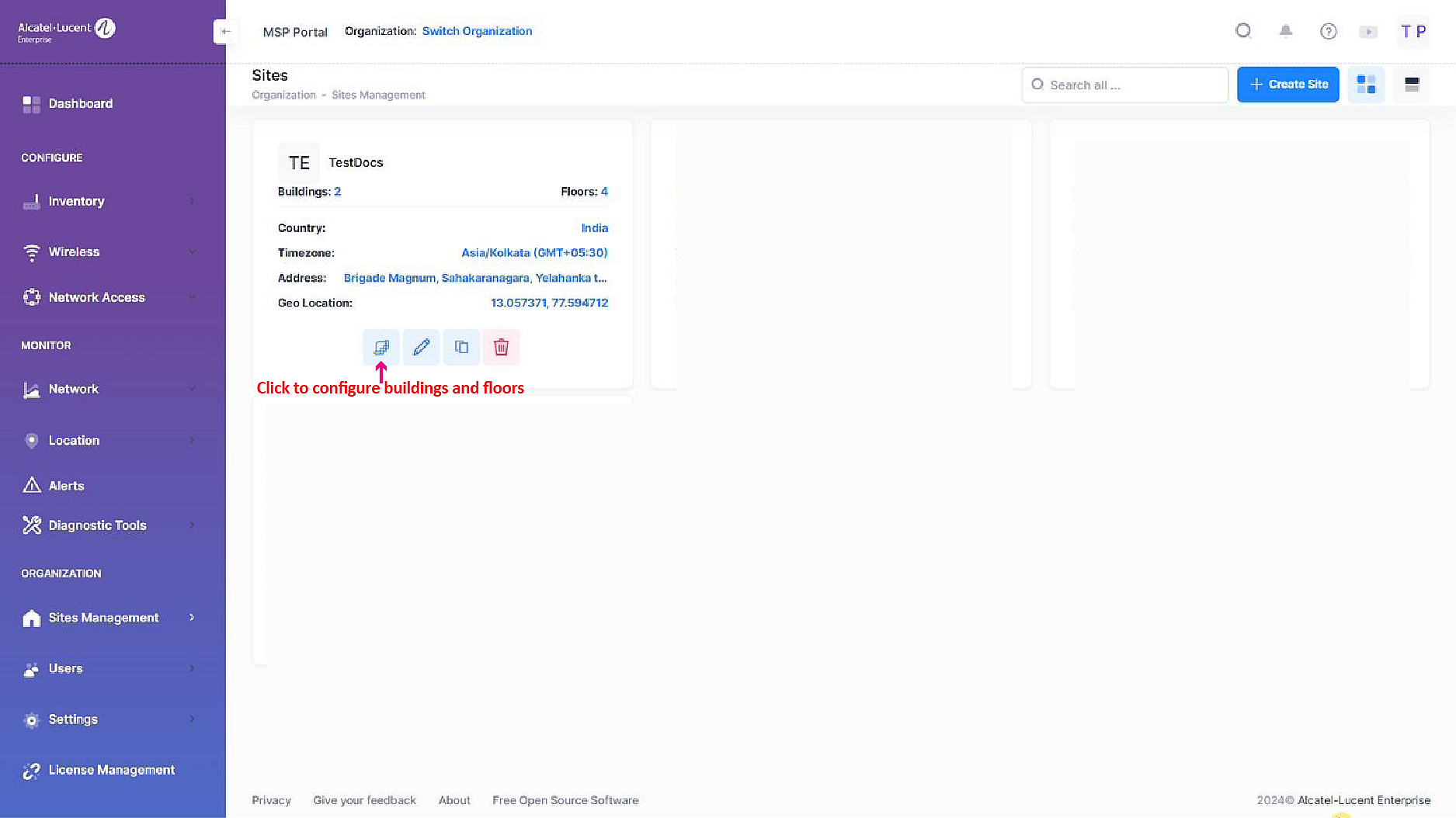

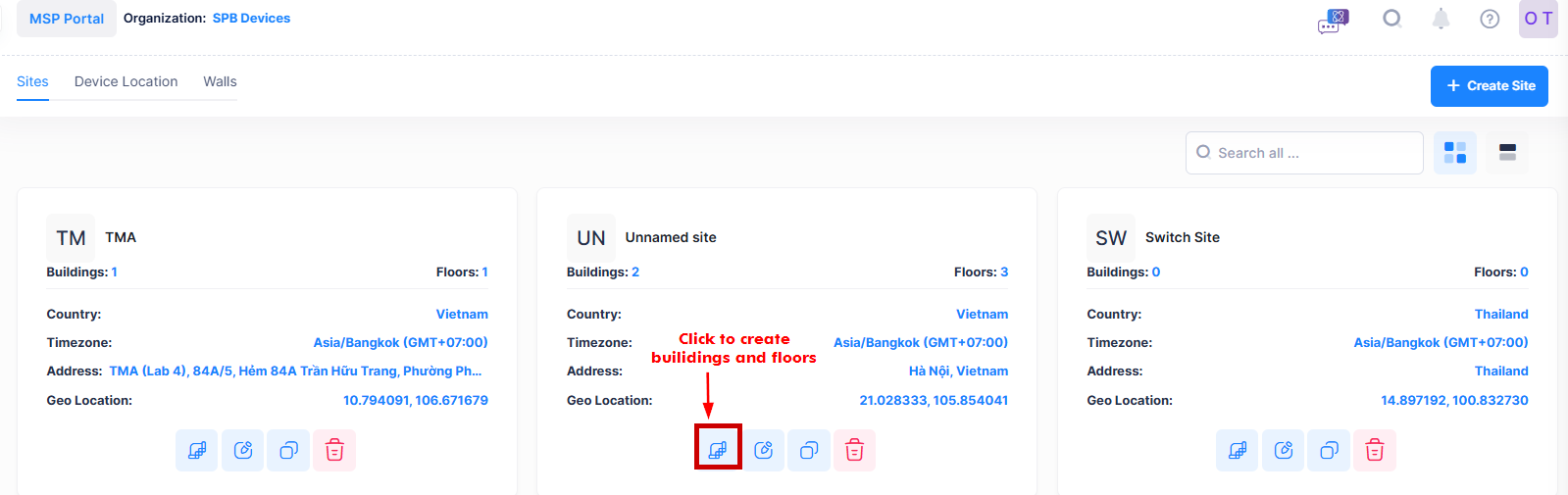

On the Site Widget, click on Configure Buildings & Floors to open the Buildings & Floors screen.

On the Buildings & Floors screen you can complete the following tasks to configure and manage floors:

• Create a Floor

• Clone a Floor

• Edit Floor Settings

• Delete a Floor
