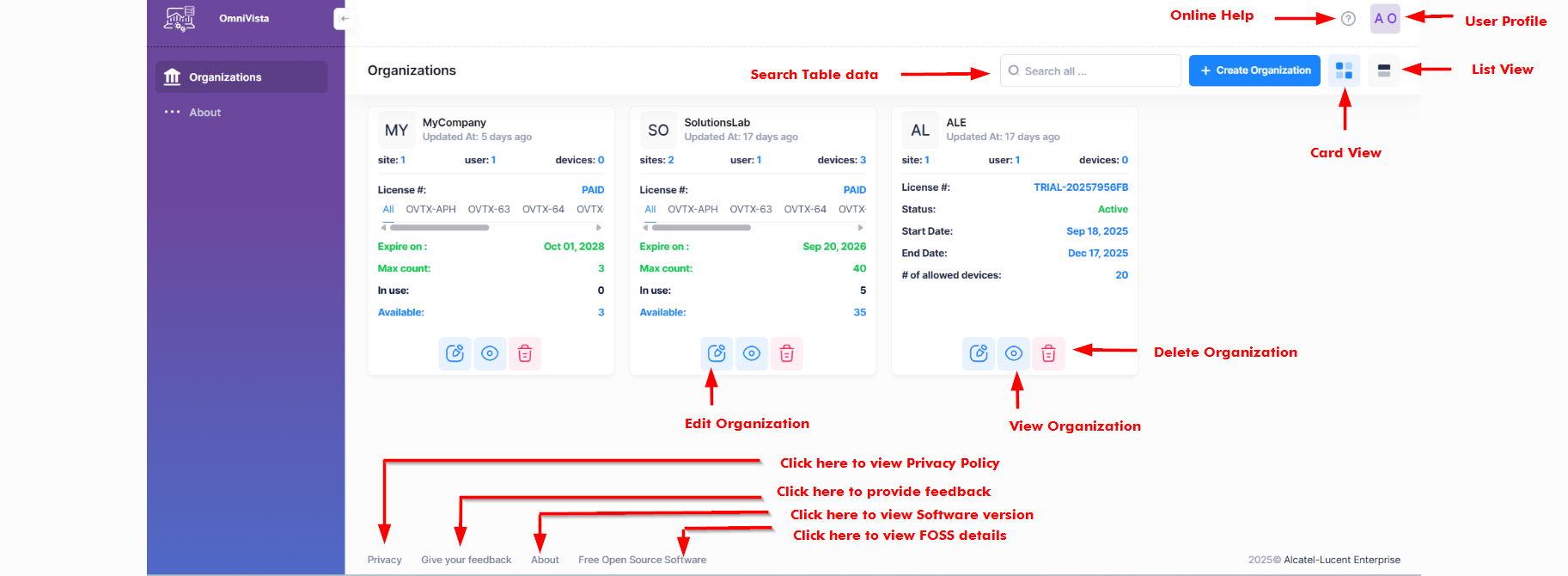

OmniVista Main Dashboard
The OmniVista Main Dashboard is initially presented to a user at login. The Dashboard is used to create and manage Organizations, and displays widgets for any Organizations the user has created.
This is where the process of managing an Organization’s network begins. Once a user creates an Organization, the administrator can access that Organization to create sites (including the site’s physical location, buildings, and floors), and add network devices to those sites.
To manage any Organization network, simply click on the View Organization button at the bottom of the Organization Widget to bring up the Organization Administrator Dashboard for that Organization.
The basic functions that can be performed from this screen are described below. For detailed procedures on the functions available from the OmniVista Main Dashboard, see Configure and Manage an Organization.
UI Functions
The following functions are available on this Dashboard:
Create an Organization - Click on the Create Organization button to bring up the Organization Information Form. Once you complete the form, you will be returned to the Main Dashboard and the new Organization widget will be displayed on the left side of the Dashboard.
View an Organization - Networks are managed from an Organization’s Dashboard. Once you are approved to access an Organization, click on the View Organization button at the bottom of the Organization’s widget to access the Organization Administrator Dashboard. For an overview of this Dashboard, see the Organization Administrator Dashboard.
Edit/Delete an Organization - To edit an Organization's name/image, or delete an Organization, click on the buttons at the bottom of the Organization's widget.
Select Edit to change an Organization’s name, image, persistency values, password policy, or the audit configuration schedule.
Select Delete to delete the Organization. Deleting an Organization will delete the associated users, licenses, sites, buildings, floors, devices, reports, walls declared, and all device configurations in this organization.
Search for an Organization - If you are managing a large number of Organizations, you can type the Organization name into the Search Bar at the top of the screen to filter the Dashboard view to only display specific Organization(s).
Privacy - ALE Privacy and Data Protection Policy.
Give Your Feedback - Provide feedback about OmniVista.
About - It provides details of the software version being used for various Applications.
Free and Open Source Software - Free and Open Source Software (FOSS) used in OmniVista.
