Stellar WiFi RTLS Data Format
Consider the following information and data format that is used to send WiFi RTLS data to third-party RTLS applications:
The payload data format of the gateway report is an array of JSON, which contains one or more WiFi device information scanned in a reporting cycle.

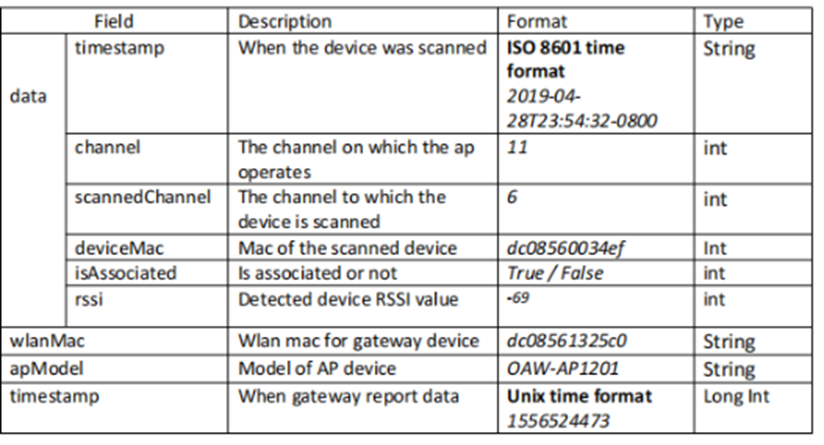

The reported information includes information about the scanned WiFi device and the gateway. Consider the following data format used to report the scanned information.
![](../__attachments/766772358/image-20230919-202153.png?inst-v=6880045d-c000-436a-8bf1-119c01664b55)

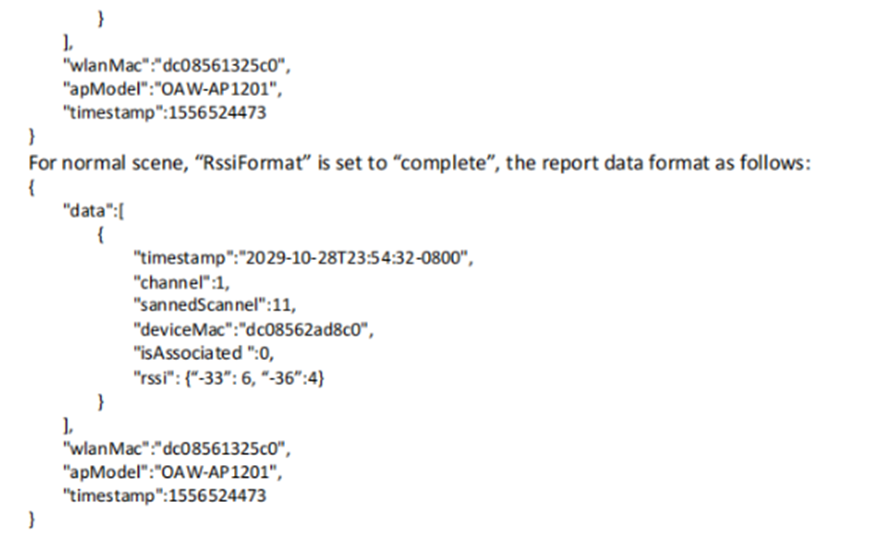

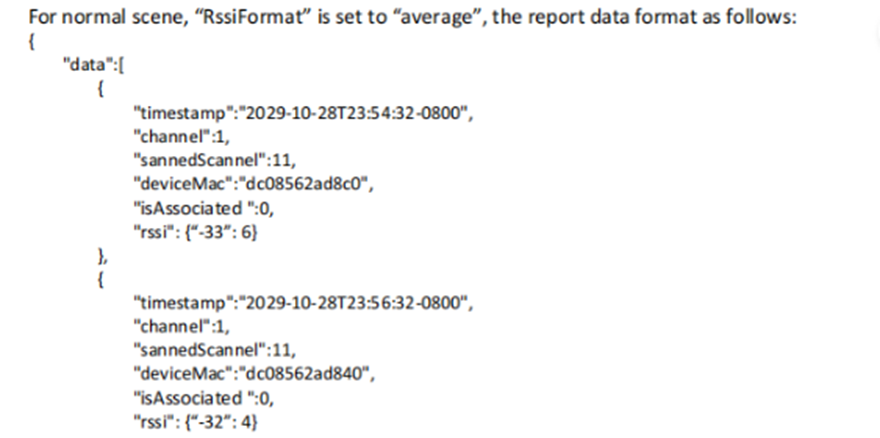

The reporting JSON data format is similar to the following:
![](../__attachments/766772358/image-20230919-203253.png?inst-v=6880045d-c000-436a-8bf1-119c01664b55)
![](../__attachments/766772358/image-20230919-203317.png?inst-v=6880045d-c000-436a-8bf1-119c01664b55)
